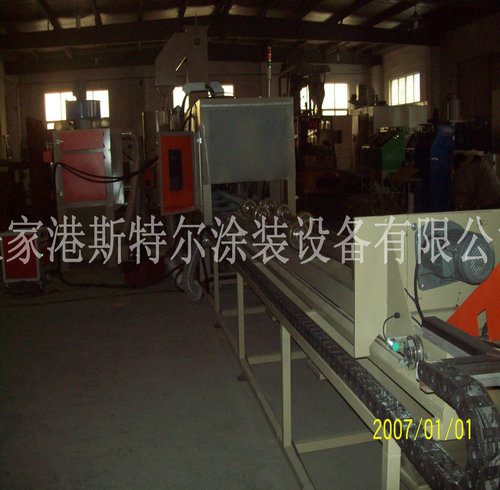

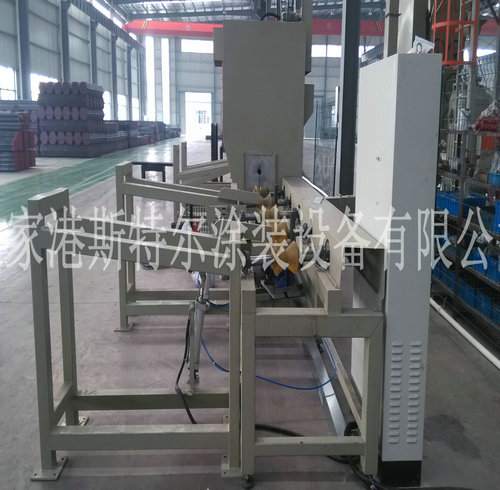

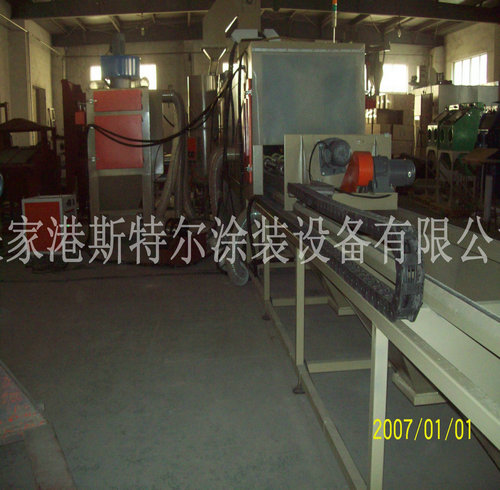

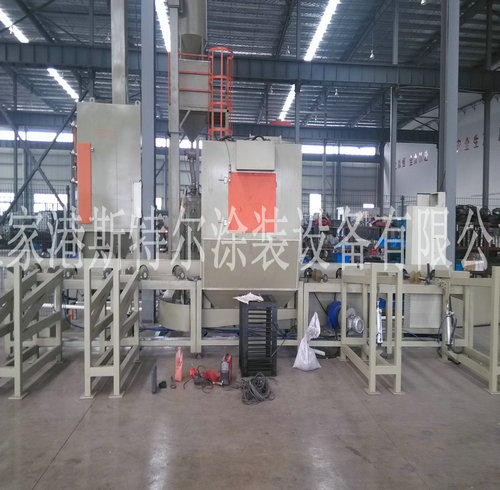

管道外壁自動噴砂機
◆常用比率 Applicable scope
管(guan)類零(ling)件,如:保溫鋼管(guan)、螺紋鋼、連(lian)接桿、絲杠、大形圓錐形、圓筒(tong)形類、圓錐形型(xing)工件產品;選取雙槍(可(ke)按(an)耍求多槍)及漩風式(shi)除塵處理(li)器和光學感受到(dao)功能(neng)模塊,上升了加工能(neng)力(li)及大的(de)變少了維修服務(wu)率(lv)。 (此cpu型(xing)號需預計)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆基本方法叁數 Main technical parameters
|
機子具體型號 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
崗位艙尺寸圖 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整個機械長度 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
再壓縮空氣管的源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
電源線 Power |
220v 50Hz |
220v 50Hz |
|
變頻器三相異步電機變頻調速器 Governor |
250W×2 |
250W×2 |
|
轉移器變頻電動機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
溶合器風口尺寸 Air separator |
35m3/min |
35m3/min |
|
機械設備容量 Machine weight |
900kg |
900kg |
