無塵自動循環回收噴砂機系列

◆車輛優點 Product features（請向下瀏覽記(ji)錄挺大量成功案例圖片視(shi)頻供參看）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”噴涂車間空氣當中焊接煙塵爆炸不臟衛生要求。砂料、焊接煙塵爆炸會自動回報、拆分、不斷循環安全使用，運作現象不臟無焊接煙塵爆炸污染源。設施設備環保節能設計的，極大程度上改變了建筑工人的勞作難度和活動環保要裝反吹風安全裝置，可自動去掉燃油濾清器塵埃。預置分水吸附器。可對收縮冷空氣進行四次水油剝離。自動上料機機，將吸砂頭放砂料中，啟動時蒸空泵系統將自動上料機機。PLC可編程設定器序設定（標配），料位警告基本功能(配搭)。有調壓開關按鈕、噴吹閥開關按鈕。可靠的氣控部件與耐磨材料閥。運行半經20-70米，外壁清理等級劃分達Sa2.5-3級。配置單單應急防水性交流電源開關電源插板電源開關電源線插座，便捷操作使用流程。配置單單把握交流電源開關電源航天插板電源開關電源線插座便捷操作使用流程。多樣顏值的防潮把握把握面板與電機把握系統箱。系統維護與巡檢尤為便捷。車式膽機機箱構成，防水防潮，中國移動便捷。膽機機箱門邊進行一鍵門瑣接入，折裝便捷。手將電源開關把握（電機把握系統DC24V）。一機三用，兼有開園式、工業園吸砂器、優質型兩類產品的系統。噴砂冷水機采取特別抑制電路開關，的工作阻力在0.2Kpa-0.8Kpa條件內中任何調結，可足夠各種類件的噴砂加工特殊要求。動用條件：去銹、除漆、焊道處     理（比如不銹鋼裝飾管嗎材料焊口基本周圍的去黑、去焊渣除理）去麻點、飛邊、脫色皮、不銹鋼裝飾管嗎材料，鋁面的精致型亞光除理（耐污性好些、可掩蓋的劃傷）、去混泥土土、石雕面污圬等除理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆具體技巧參數表 Main technical parameters

絲機型號 Model	STR-B型無塵自動循環回收式噴砂機
崗位電源模塊 Work power	380V 50HZ
空氣(qi)當中壓強 Air pressure	5-7kg/cm2
耗氣(qi)量 Gas consumption	3m3/min
直流無刷電機額(e)定功率 Motor power	4kw
工做能力 Work efficiency	6-10m2
上班(ban)圓弧 Work radius	10m 可據(ju)各(ge)種(zhong)需求改長，實際聯系(xi)客戶
事情表(biao)現形式 Work form	主動反復的收售Automatic cycle recovery
進行清(qing)理分等(deng)級(ji) Clean level	Sa2-3
粗糙，度(du) Roughness	60μm之間
總重(zhong)量 Weight	260kg
形狀規格尺(chi)寸 Shape dimension	1380×830×1700mm
砂料規模(mo) Sand material specifications	20-100#上述（1.0mm-0.04mm）

◆應用區域 Applicable scope

1.綠(lv)色(se)條件高且無(wu)一(yi)切凈化產品的(de)的(de)場(chang)所；

2.整(zheng)理等級劃(hua)分(fen)較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

采用空間：防銹處理、除油漆物料染焊接操作去鋸齒、飛邊、腐蝕皮不銹鋼304、鋁合金型材表面層的典雅型亞光治理（耐污性(xing)有效、可(ke)掩蓋劃痕(hen)）去現(xian)澆混凝土(tu)土(tu)、石雕表面能污圬等(deng)治理。

（重(zhong)要(yao)素材可決(jue)定性A型或致電的(de)方式我(wo)工廠(chang)）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 護膚品優(you)勢特點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓解，效果也(ye)是非常有(you)利(li)在戶外進行可(ke)移動非常有(you)利(li)，有(you)很大的(de)(de)的(de)(de)減低了勞動者力度，或(huo)者加工處理效果在中國大陸類(lei)似型(xing)車輛快(kuai)捷鍵(jian)；得(de)(de)見許多業(ye)主的(de)(de)統(tong)一教育部認證，并(bing)就已經得(de)(de)見了多的(de)(de)推行和應(ying)用！（明確材質可(ke)選取A型(xing)或(huo)撥打我我司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

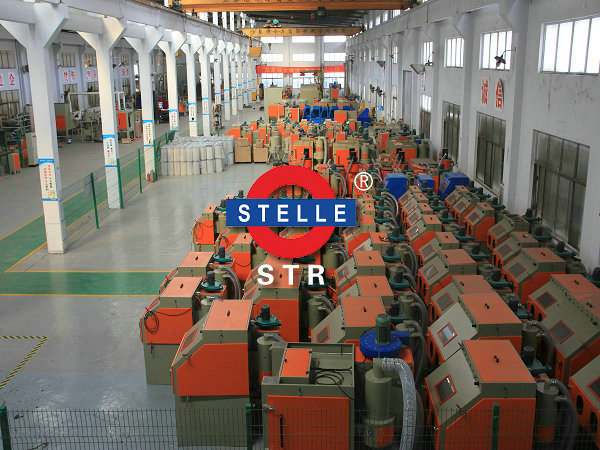

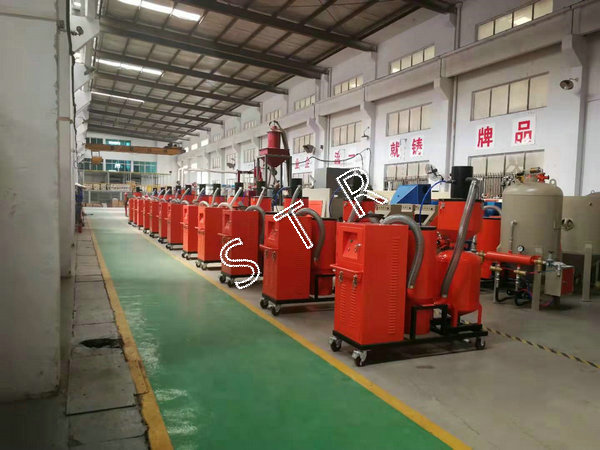

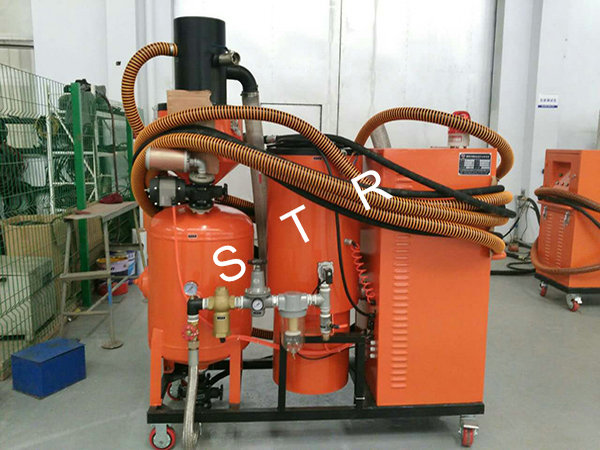

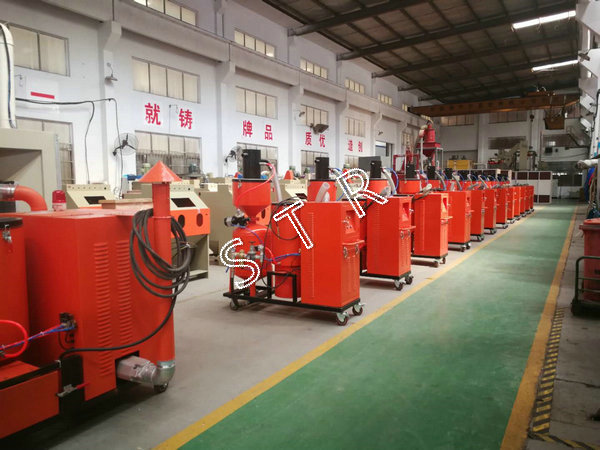

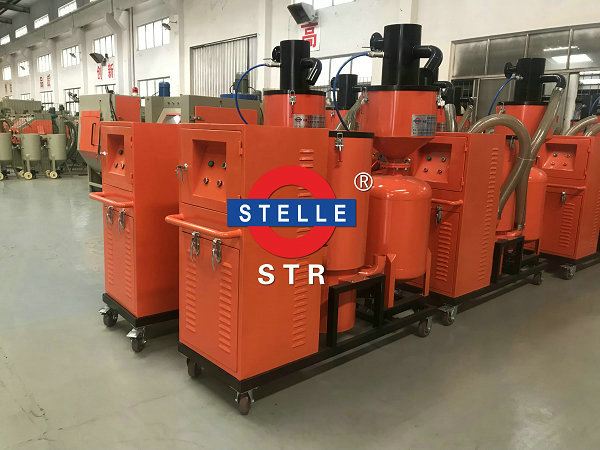

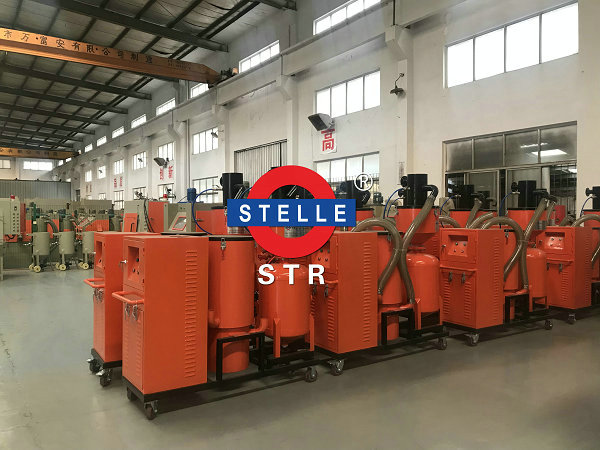

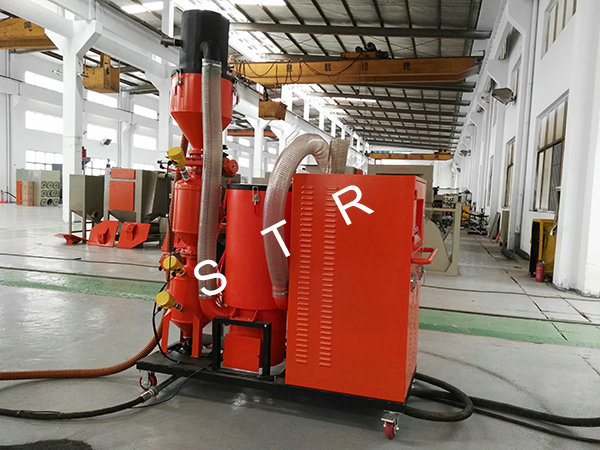

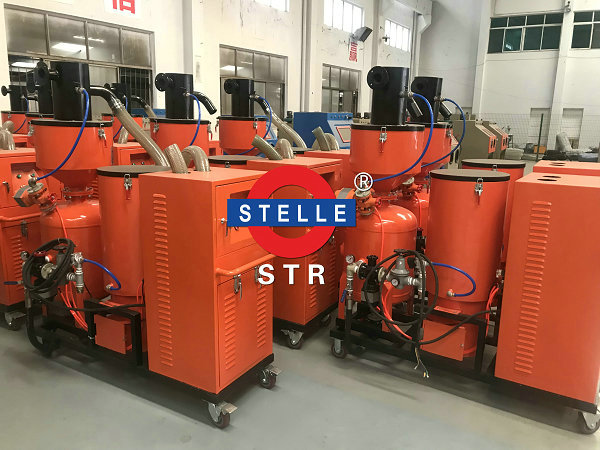

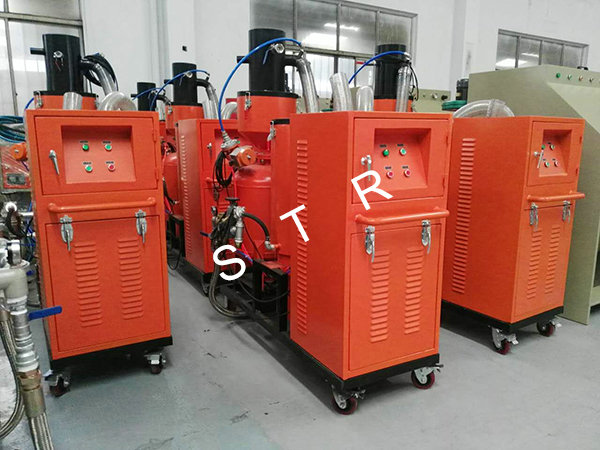

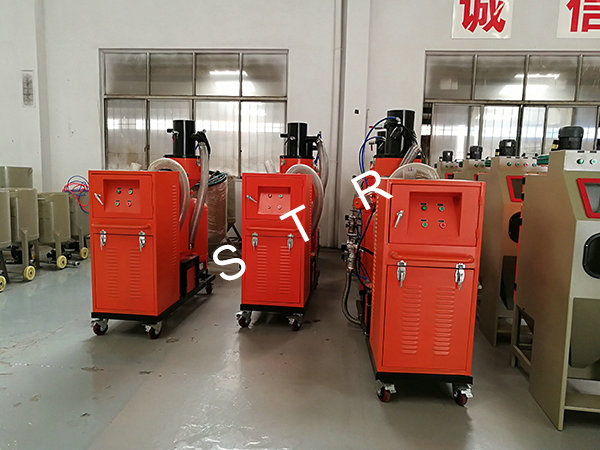

部份無塵自動循環環保型噴砂機案例:
